♦执行标准
产品规范 |
设计规范 |
结构长度 |
连接法兰 |
试验与检验 |
ASMEB16.34 |
|
GB/T9113.1 HG/T20592 HG/T20615、ASMEB16.5 |
GB/T9092 API 598 |
♦主要零件材料
序号 |
零件名称 |
材质 |
序号 |
零件名称 |
材质 |
1 |
阀座 |
25+STL |
13 |
左体 |
WCB |
2 |
垫片 |
柔性石墨+不锈钢 |
14 |
护板 |
35CrMo |
3 |
阀瓣 |
45+STL |
15 |
阀体 |
WCB |
4 |
垫块 |
2Cr13 |
16 |
螺柱 |
35CrMoA |
5 |
对开圆环 |
2Cr13 |
17 |
螺母 |
45 |
6 |
阀瓣盖 |
45 |
18 |
支架 |
WCB |
7 |
阀杆 |
2Cr13 |
19 |
螺栓 |
35CrMoA |
8 |
防转板 |
35 |
20 |
驱动装置 |
― |
9 |
填料垫 |
1Cr13 |
― |
― |
― |
10 |
填料 |
柔性石墨 |
― |
― |
― |
11 |
填料压套 |
1Cr13 |
― |
― |
一 |
12 |
填料压盖 |
WCB |
― |
一 |
一 |

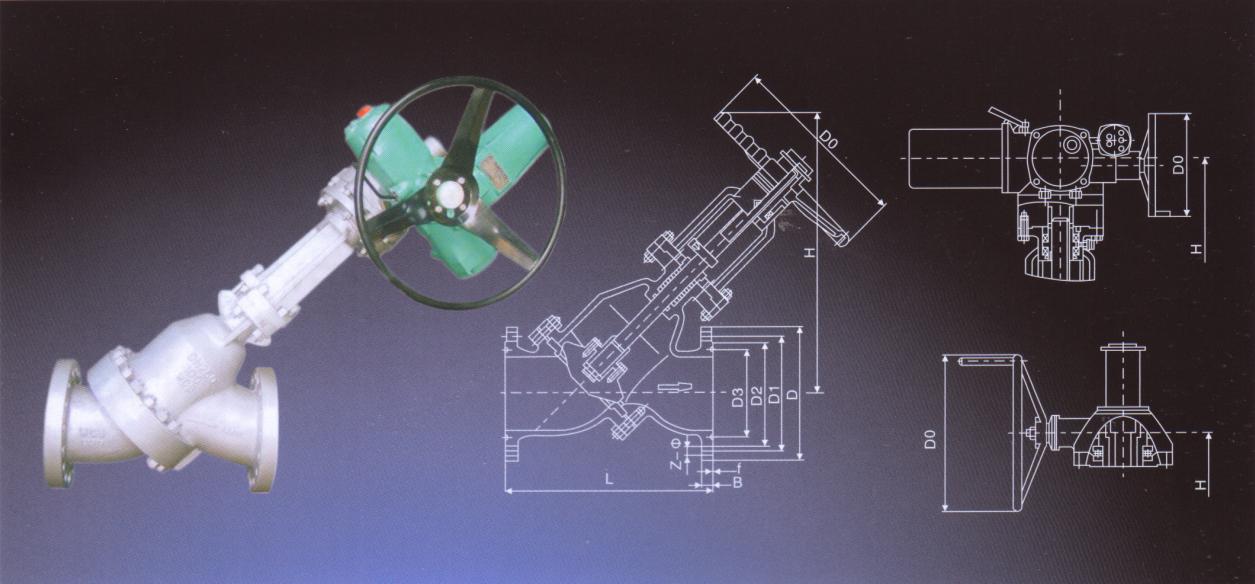

♦主要外形连接尺寸 Class 300
DN(mm) |
NPS(in) |
驱动方式 |
L |
D |
D1 |
D2 |
D3 |
B |
Z-Φ |
f |
DO |
H |
驱动装费 |
JS545Y |
|||||||||||||
50 |
2 |
手动 |
372 (361)* |
165 |
127 |
108 |
82.55 |
22.5 |
8-18 |
7.9 |
350 |
435 |
一 |
80 |
3 |
390 |
210 |
168.5 |
146 |
123.82 |
29 |
8-22 |
7,9 |
400 |
585 |
一 |
|
100 |
4 |
468 |
255 |
200 |
175 |
149.22 |
32 |
8-22 |
7,9 |
450 |
680 |
一 |
|
125 |
5 |
546 |
280 |
235 |
210 |
180.98 |
35 |
8-22 |
7,9 |
500 |
740 |
一 |
|
150 |
6 |
齿动 |
619 |
320 |
270 |
241 |
211.12 |
37 |
12-22 |
7.9 |
600 |
1300 |
BA-1 |
200 |
8 |
743 (736)* |
380 |
330 |
302 |
269.88 |
41.5 |
12-26 |
7.9 |
600 |
1350 |
BA-1 |
|
250 |
10 |
848 (841)* |
445 |
387.5 |
356 |
323.85 |
48 |
16-30 |
7.9 |
900 |
1400 |
BA-2 |
|
150 |
6 |
电动 |
619 |
320 |
270 |
241 |
211.12 |
37 |
12-22 |
7.9 |
320 |
1200 |
SMC-0 |
200 |
8 |
743 (736)* |
380 |
330 |
302 |
269.88 |
41.5 |
12-26 |
7.9 |
320 |
1250 |
SMC-1 |
|
250 |
10 |
848 (841)* |
445 |
387.5 |
356 |
323.85 |
48 |
16-30 |
7.9 |
380 |
1350 |
SMC-2 |
♦主要外形连接尺寸 Class 400
DN(mm) |
NPS(in) |
驱动方式 |
L |
D |
D1 |
D2 |
D3 |
B |
Z-Φ |
f |
DO |
H |
驱动装费 |
JS545Y |
|||||||||||||
50 |
2 |
手动 |
378 |
165 |
127 |
108 |
82.55 |
22.5 |
8-18 |
7.9 |
350 |
435 |
一 |
80 |
3 |
470 |
210 |
168.5 |
146 |
123.82 |
32 |
8-22 |
7.9 |
440 |
600 |
一 |
|
100 |
4 |
546 |
275 |
216 |
175 |
149.22 |
38.5 |
8-26 |
7.9 |
450 |
700 |
一 |
|
125 |
5 |
610 |
330 |
267 |
210 |
180.98 |
44.5 |
8-30 |
7.9 |
500 |
765 |
一 |
|
150 |
6 |
齿动 |
641 (643)* |
355 |
292 |
241 |
211.12 |
48 |
12-30 |
7.9 |
600 |
1350 |
BA-1 |
200 |
8 |
771 |
420 |
349 |
302 |
269.88 |
55.5 |
12-33 |
7.9 |
900 |
1300 |
BA-1 |
|
250 |
10 |
880 (865)* |
510 |
432 |
356 |
323.85 |
63.5 |
16-36 |
7.9 |
900 |
1450 |
BA-2 |
|
150 |
6 |
电动 |
641 (634)* |
355 |
292 |
241 |
211.12 |
48 |
12-30 |
7.9 |
320 |
1250 |
SMC-0 |
200 |
8 |
771 |
420 |
349 |
302 |
269.88 |
55.5 |
12-33 |
7.9 |
320 |
1300 |
SMC-1 |
|
250 |
10 |
880 (865)* |
510 |
432 |
356 |
323.85 |
63.5 |
16-36 |
7.9 |
380 |
1350 |
SMC-2 |
DN(mm) |
驱动方式 |
L |
D |
D1 |
D2 |
B |
Z-Φ |
f |
Do |
H |
JS946Y |
||||||||||
50 |
手动 |
230 |
165 |
125 |
99 |
20 |
4-18 |
2 |
250 |
307 |
80 |
310 |
200 |
160 |
132 |
20 |
8-18 |
2 |
250 |
386 |
|
100 |
350 |
220 |
180 |
156 |
22 |
8-18 |
2 |
250 |
448 |
|
125 |
400 |
250 |
210 |
184 |
22 |
8-18 |
2 |
320 |
519 |
|
150 |
480 |
285 |
240 |
211 |
24 |
6-22 |
2 |
360 |
600 |
|
200 |
齿动 |
600 |
340 |
295 |
266 |
24 |
8-22 |
2 |
450 |
795 |
250 |
730 |
395 |
350 |
319 |
26 |
12-22 |
2 |
600 |
880 |
|
300 |
650 |
445 |
400 |
370 |
26 |
12-22 |
2 |
600 |
935 |
|
350 |
980 |
505 |
460 |
429 |
26 |
16-22 |
2 |
600 |
1088 |
|
200 |
电动 |
600 |
340 |
295 |
266 |
24 |
6-22 |
2 |
305 |
995 |
250 |
730 |
395 |
350 |
319 |
26 |
12-22 |
2 |
305 |
1045 |
|
300 |
850 |
445 |
400 |
370 |
26 |
12-22 |
2 |
305 |
1105 |
|
350 |
980 |
505 |
460 |
429 |
26 |
16-22 |
2 |
305 |
1250 |

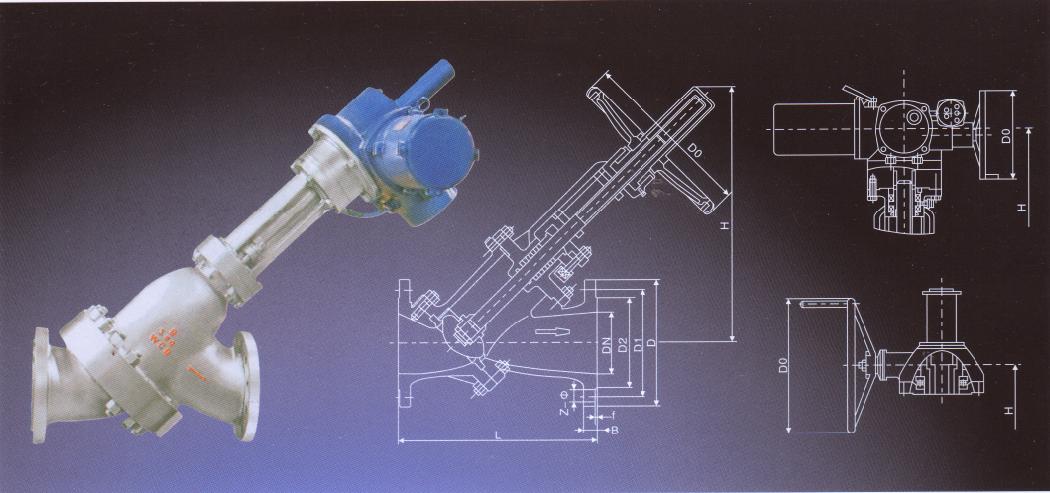

♦主要外形连接尺寸 PN1.6MPa
DN |
驱动方式 |
L |
D |
D1 |
D2 |
B |
Z-Φ |
f |
Do |
H |
JS945Y |
||||||||||
50 |
手动 |
230 |
165 |
125 |
99 |
20 |
4-18 |
2 |
250 |
307 |
80 |
310 |
200 |
160 |
132 |
20 |
8-18 |
2 |
250 |
386 |
|
100 |
350 |
220 |
180 |
156 |
22 |
8-18 |
2 |
250 |
448 |
|
125 |
400 |
250 |
210 |
184 |
22 |
8-18 |
2 |
320 |
519 |
|
150 |
480 |
285 |
240 |
211 |
24 |
8-22 |
2 |
360 |
600 |
|
200 |
齿动 |
600 |
340 |
295 |
266 |
24 |
12-22 |
2 |
450 |
795 |
250 |
730 |
405 |
355 |
319 |
26 |
12-26 |
2 |
600 |
880 |
|
300 |
850 |
460 |
410 |
370 |
28 |
12-26 |
2 |
600 |
935 |
|
350 |
980 |
520 |
470 |
429 |
30 |
16-26 |
2 |
600 |
1088 |
|
200 |
电动 |
600 |
340 |
295 |
266 |
24 |
12-22 |
2 |
305 |
995 |
250 |
730 |
405 |
355 |
319 |
26 |
12-26 |
2 |
305 |
1045 |
|
300 |
850 |
460 |
410 |
370 |
28 |
12-26 |
2 |
305 |
1105 |
|
350 |
980 |
520 |
470 |
429 |
30 |
16-26 |
2 |
305 |
1250 |
♦主要外形连接尺寸 |
|
|
|
PN2.5MPa |
||||||
DN(mm) |
驱动方式 |
L |
D |
D1 |
D2 |
B |
Z-Φ |
f |
DO |
H |
JS945Y |
||||||||||
50 |
手动 |
230 |
165 |
125 |
99 |
20 |
4-18 |
2 |
250 |
307 |
80 |
310 |
200 |
160 |
132 |
24 |
8-18 |
2 |
250 |
386 |
|
100 |
350 |
235 |
190 |
156 |
24 |
8-22 |
2 |
250 |
448 |
|
125 |
400 |
270 |
220 |
184 |
26 |
8-26 |
2 |
320 |
519 |
|
150 |
480 |
300 |
250 |
211 |
28 |
8-26 |
2 |
360 |
600 |
|
200 |
齿动 |
600 |
360 |
310 |
274 |
30 |
12-26 |
2 |
450 |
795 |
250 |
730 |
425 |
370 |
330 |
32 |
12-30 |
2 |
600 |
880 |
|
300 |
850 |
485 |
430 |
389 |
34 |
16-30 |
2 |
600 |
935 |
|
350 |
980 |
555 |
490 |
448 |
38 |
16-33 |
2 |
600 |
1088 |
|
200 |
电动 |
600 |
360 |
310 |
274 |
30 |
12-26 |
2 |
305 |
995 |
250 |
730 |
425 |
370 |
330 |
32 |
12-30 |
2 |
305 |
1045 |
|
300 |
850 |
485 |
430 |
389 |
34 |
16-30 |
2 |
305 |
1105 |
|
350 |
980 |
555 |
490 |
448 |
38 |
16-33 |
2 |
305 |
1250 |
♦主要外形连接尺寸 PN16MPa
DN(mm) |
L |
D |
D1 |
D2 |
B |
Z-Φ |
f |
H |
驱动装置 |
JS945Y |
|||||||||
100 |
430±1 |
265 |
210 |
162 |
40 |
8-30 |
3 |
747 |
BA-0 |
150 |
550±1.5 |
355 |
290 |
211 |
50 |
12-33 |
2 |
840.5 |
BA-1 |
200 |
650±1.5 |
430 |
360 |
285 |
60 |
12-36 |
3 |
1255 |
Z250 |
250 |
838±1.5 |
515 |
430 |
345 |
68 |
12-42 |
3 |
1435 |
Z350 |
